Schneider XA2EW36B1 Harmony | Complete illuminated push button, Easy Harmony XA2, plastic, flush, blue, 22mm, spring return, 24V AC DC, 1NO

Description

Schneider XA2EW36B1 Harmony | Complete Illuminated Push-Button – Ø22mm – Blue – Spring Return – 24V AC/DC – 1NO

1. Overview

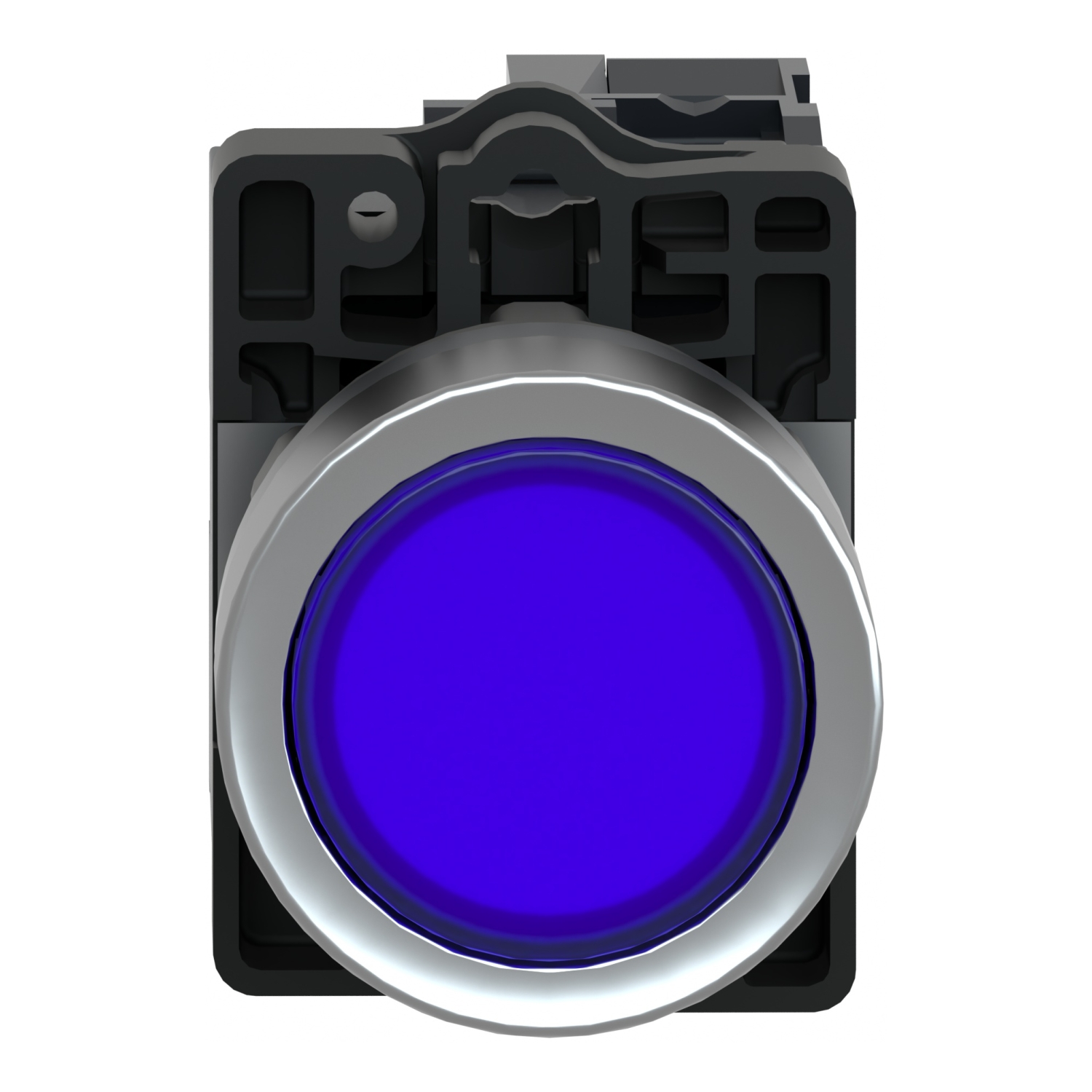

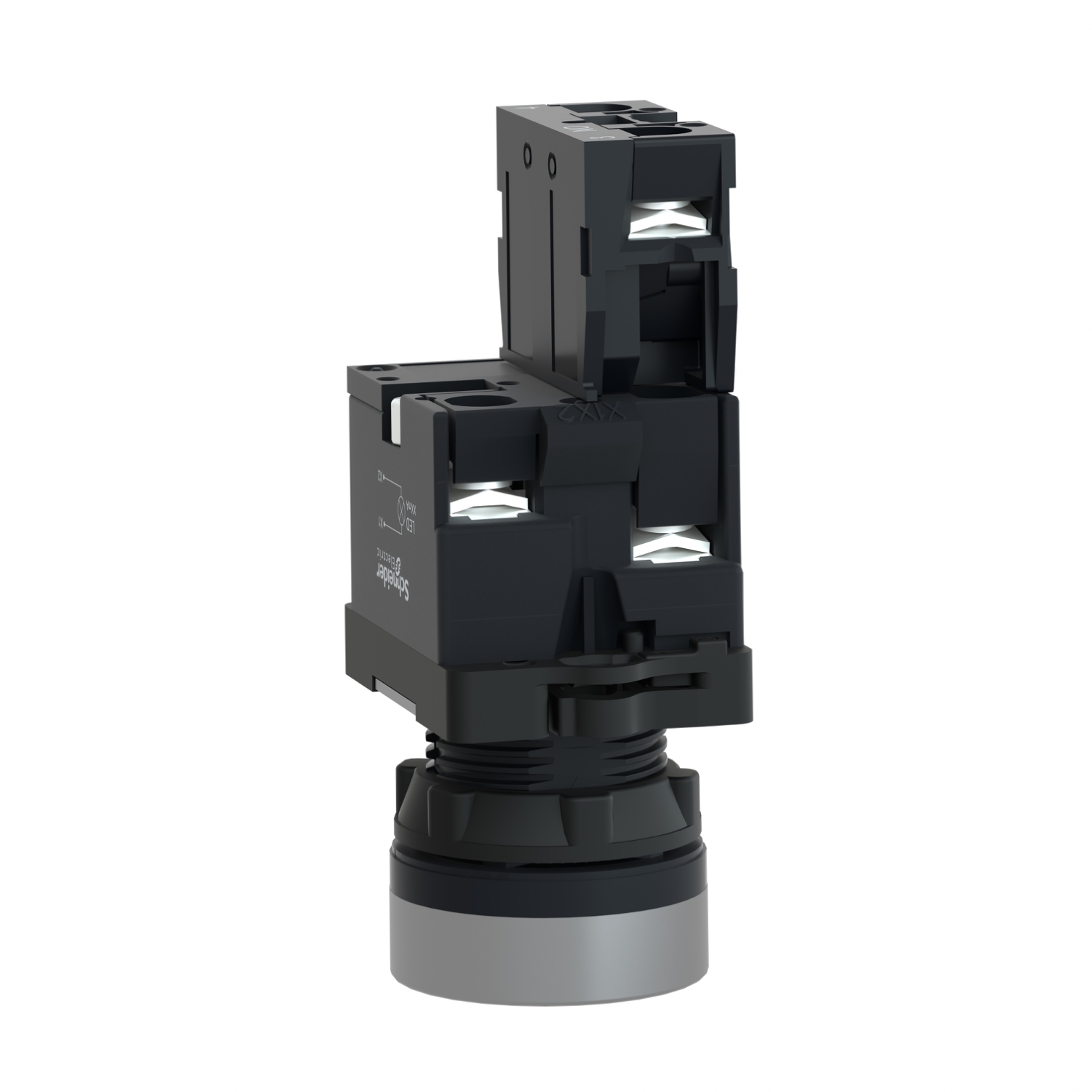

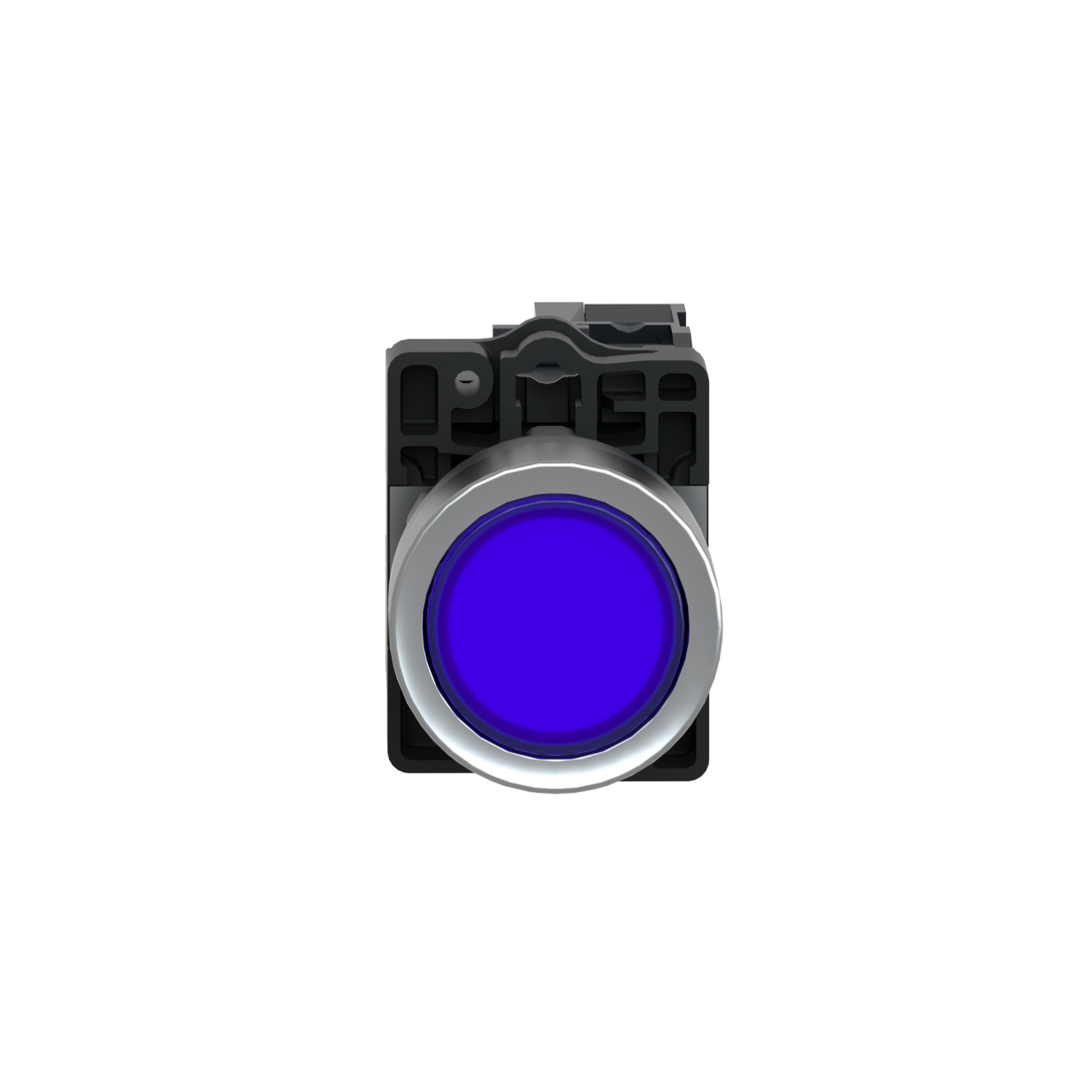

The Schneider XA2EW36B1 is a complete illuminated push-button from the Harmony XA2 series, designed for industrial control applications. It features a blue flush button, operates at 24V AC/DC, and includes a spring return mechanism with a 1NO (normally open) contact. With a 22mm mounting diameter, it ensures easy integration into control panels.

2. Key Features

• Model: XA2EW36B1
• Series: Harmony XA2
• Color: Blue
• Button Type: Flush illuminated push-button
• Mechanism: Spring return (momentary action)

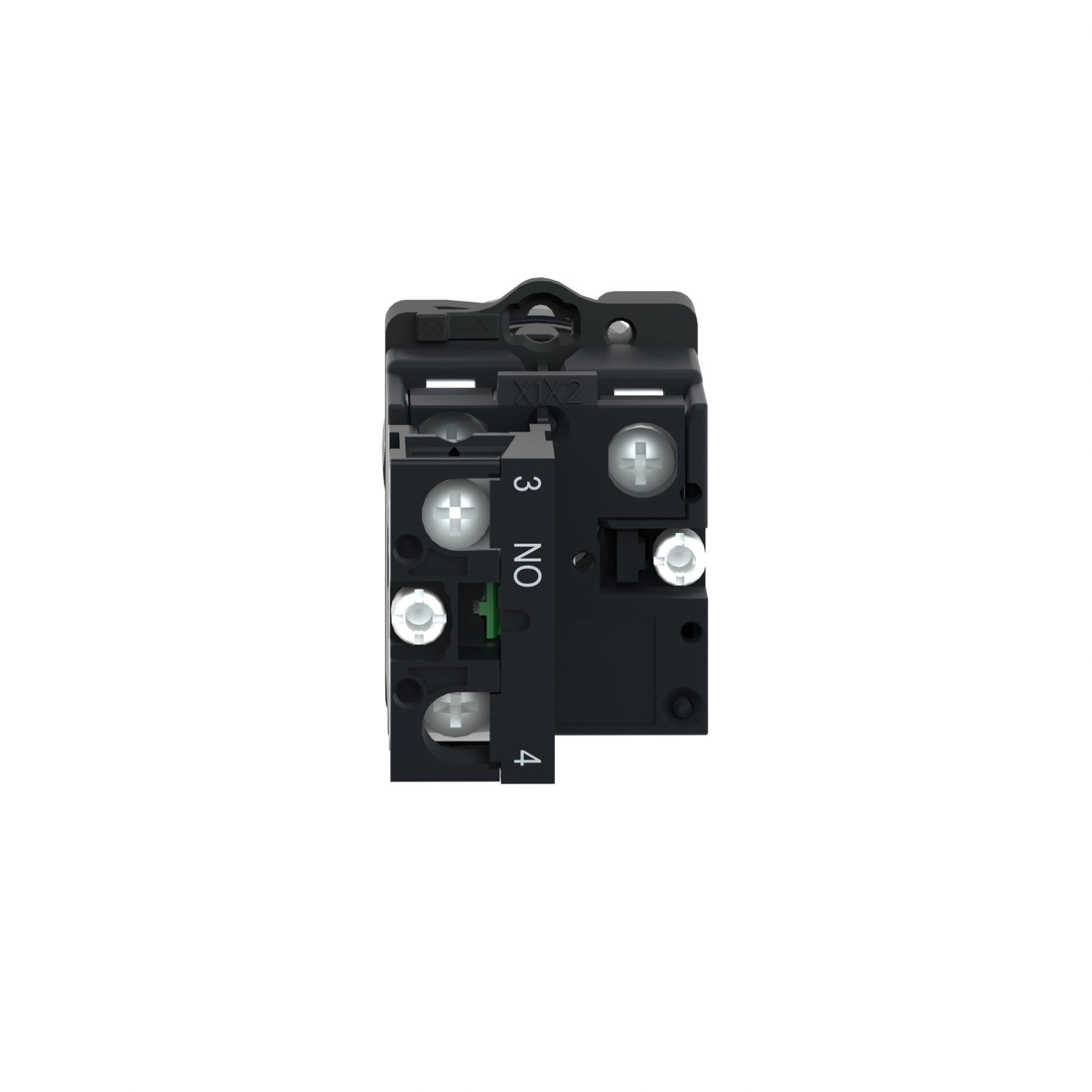

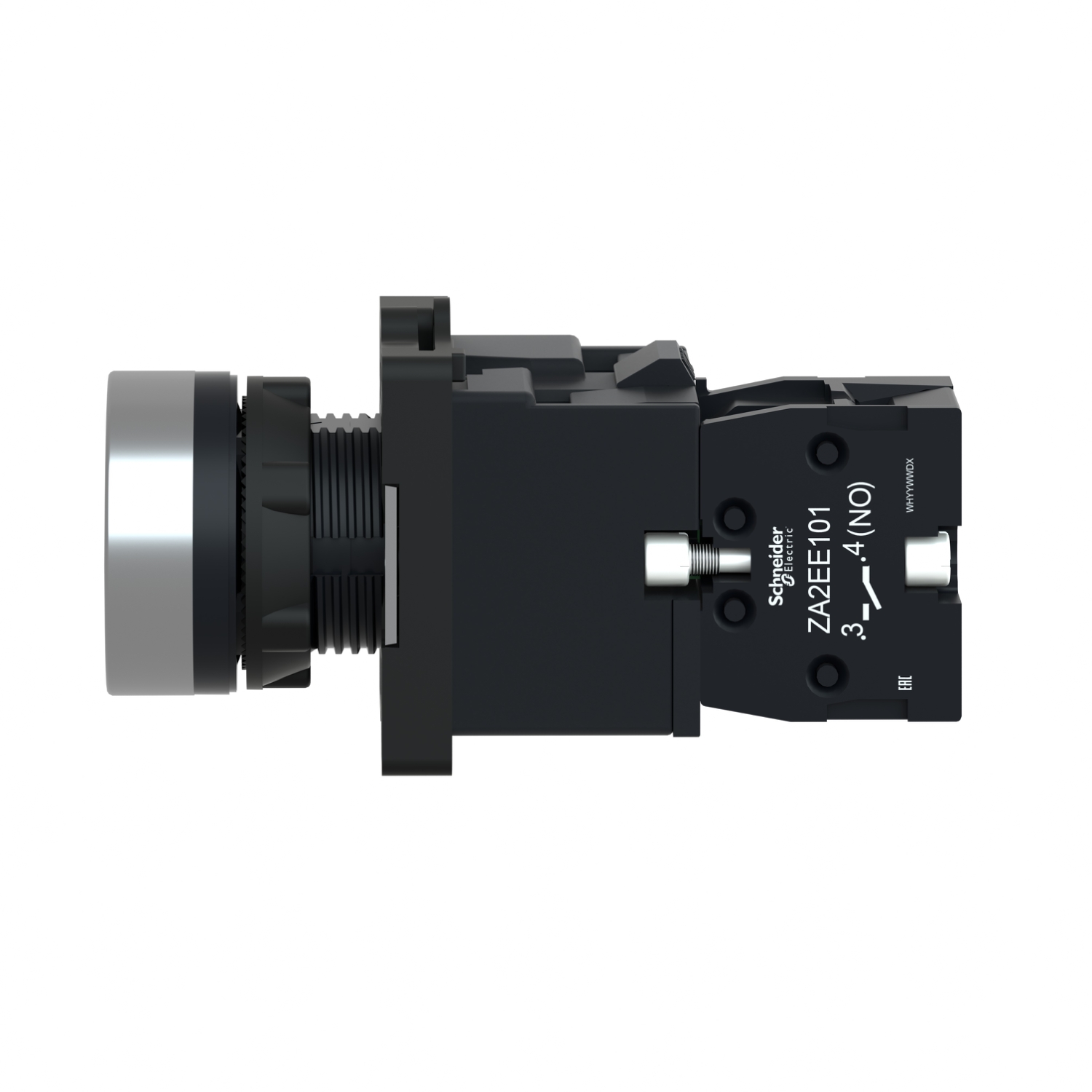

• Contact Type: 1NO (Normally Open)
• Operating Voltage: 24V AC/DC
• Illumination Type: LED for clear status indication
• Mounting Diameter: 22mm
• Material: High-quality plastic construction

3. Technical Specifications

• Voltage Rating: 24V AC/DC
• Electrical Durability: Long operational lifespan
• Mechanical Lifespan: High durability for industrial use
• Protection Rating: IP65 (Dust and water-resistant)
• Operating Temperature Range: -25°C to +70°C
• Certifications & Compliance: CE, RoHS, IEC standards

4. Applications

• Industrial control panels
• Machinery start/stop functions
• Process automation systems
• Operator control stations requiring illuminated status feedback
• Electrical control applications in manufacturing and production lines

5. Benefits

• High Visibility: LED illumination ensures clear operational feedback
• Reliable & Durable: Industrial-grade construction for extended use
• Energy Efficient: LED technology reduces power consumption
• Easy Installation: Standard 22mm mounting for compatibility with various control panels
• Compliance with Safety Standards: Ensures secure operation in industrial environments

6. Conclusion

The Schneider XA2EW36B1 Harmony illuminated blue push-button is a high-quality control device, offering LED illumination, a flush design, and a 1NO contact for efficient industrial applications. It is an ideal solution for automation, process control, and machinery operations requiring illuminated feedback.
